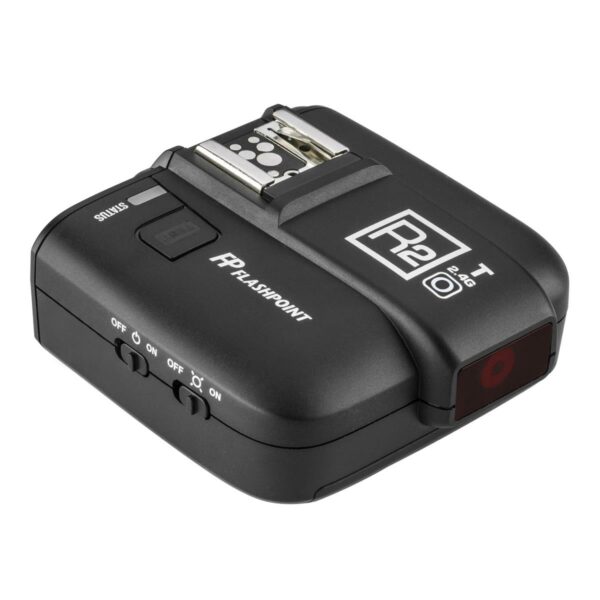

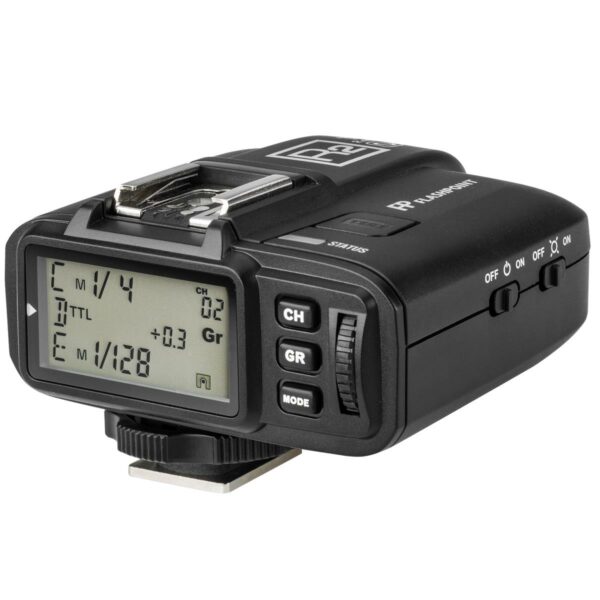

Flashpoint R2 TTL Transmitter for Panasonic & Olympus

SKU: FPRRR2TP
MSRP: $46.00

Flashpoint R2 TTL Transmitter for Panasonic & Olympus

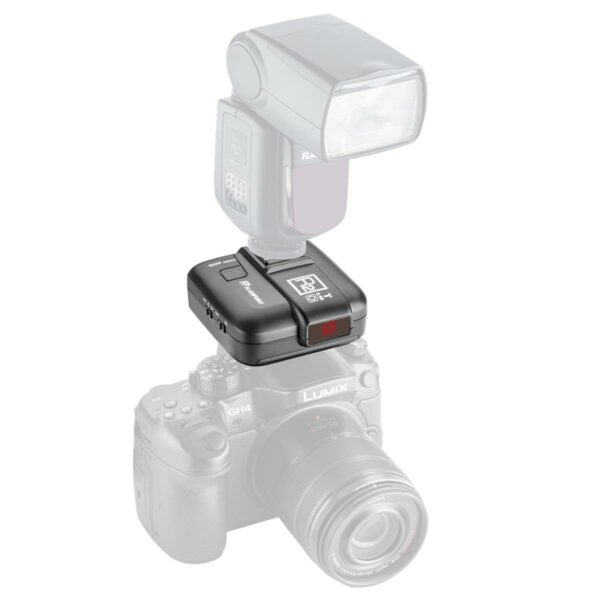

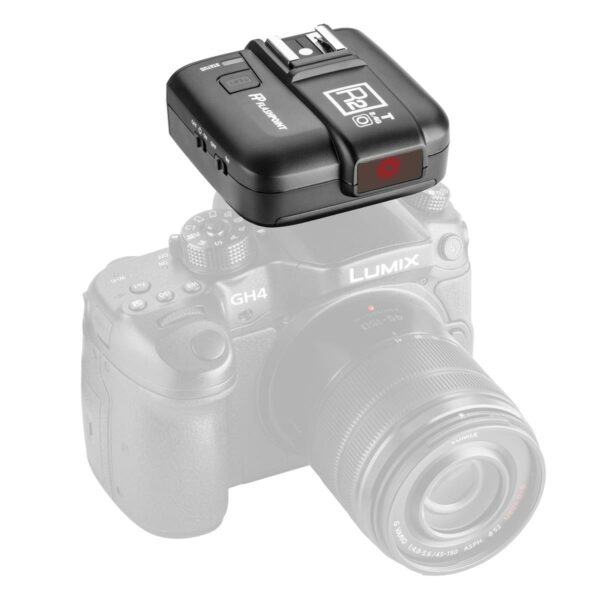

The Flashpoint R2TP Transmitter is the ultimate radio transmitter system for Panasonic & Olympus MSLRs that connects to all strobes with sync ports and also communicates to the whole R2 family including Flashpoint Streaklight, ZoomLi-on and Zoom and Panasonic/Olympus speedlights using TTL protocol without missing a beat. The incredible range of these compact and lightweight units as well as their integrated functions and features make them the first choice of professional photographers. The proprietary TTL enabled 2.4GHz R2 Radio Remote System radio triggers transmits atop a Panasonic or Olympus body with the essential TTL pass-through and works with the complete family of Flashpoint Speedlights, Monolights and Strobe lights with R2 TTL radiotransceiver built right in.

All the R2 enabled family communicate seamlessly: the lithium powered Zoom Li-on Canon, Nikon, and Sony TTL speedlights, the Zoom AA alkaline energized speedlight, the fantastic Streaklight 360 Canon and Nikon TTL powerhouse, and the portable 600ws XPLOR600 monolights. Older Flashpoint flashes can be fired and controlled off camera while being attached to the R2 Radio Remote Receiver FPRRR2RP to grace remote link to earlier models.

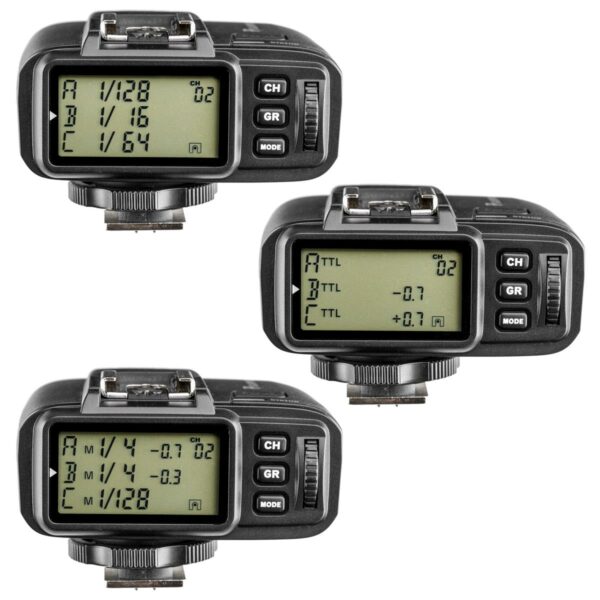

To compliment the traditional group ratio style interface, the R2-TP provides a full proprietary GR Group style interface allowing up to 5 Groups to be individually set to either TTL, Manual, or Off. PC cord sync input and output ports are provided for external device remote sync without automation.

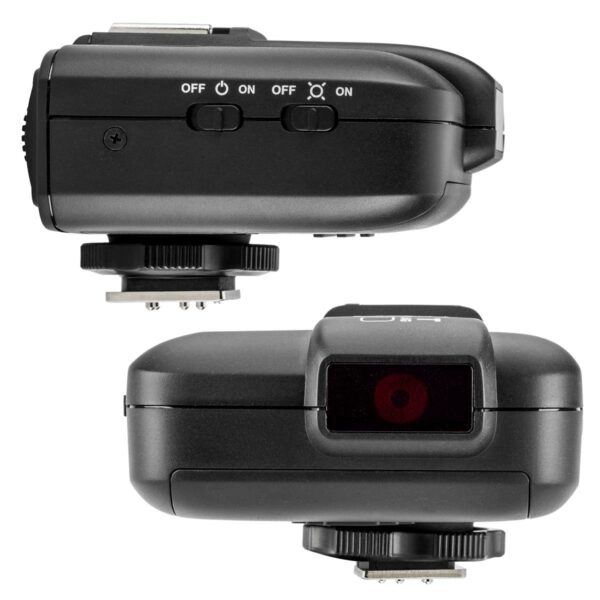

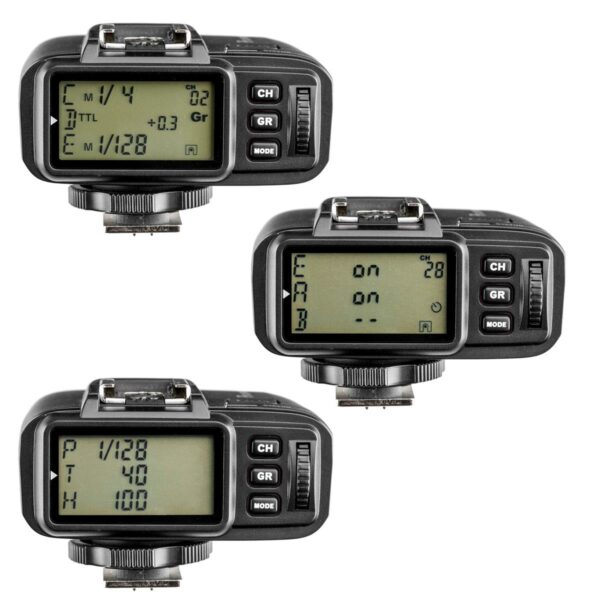

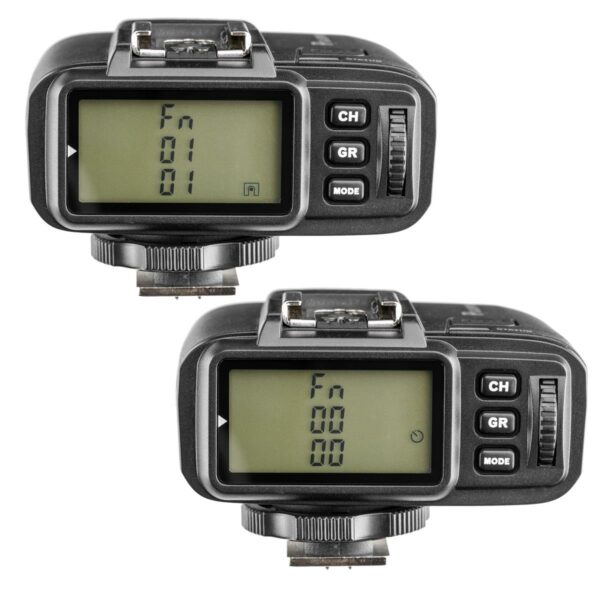

Controlling the remote strobes on the transmitter is straightforward, with a large clear LCD panel interface aside 3 separate buttons relating to channel, groups and modes, while a thumb wheel provides fast scroll adjustment for the selected function. A simple switch located on the side of the transmitter allows the laser pattern Focus Assist Light to be switched on and off when needed. The receiver device is simply set to the matching channel and you are on the way to remote TTL heaven.

Some functions are controlled by the camera within the menu selections. See the camera’s instruction manual for details.

Compatible Camera Models

This flash trigger unit can be used on the following cameras:

Olympus: PEN-F, E-P3. E-P5, E-PL5, E-PL6, E-PL7, E-PL8, E-M1, E-M10II
Panasonic: DMC-G85, DMC-GH4, DMC-GF1, DMC-GX85, DMC-LX100, DMC-FX2500GK

This table only lists the tested camera models, not all Olympus and Panasonic cameras. For the compatibility of other camera models, a self-test is recommended. Technical features are subject to change.

KEY FEATURES

  • Adds R2 2.4GHz Radio System to a Panasonic & Olympus MSLR’s
  • Flashpoint R2 2.4GHz Radio System unifies and simplifies
  • Great transmission range beyond 330 ft / 100m
  • Traditional Flash Modes of TTL / M / OFF
  • First or Second Curtain Sync
  • FEC / FEB – 1/3rd increments (½3 Stops)
  • FEL (Flash Exposure Lock)
  • Complete Manual exposure from 1/128 to Full power (1/3rd Increments)
  • GR Group Mode* – A / B / C / D / E (5 Groups)
  • Ratio Group Mode – A / B / C
  • 32 Channels
  • Large LCD Display
  • Back Light On-Off Switch
  • HSS Delay Setting – 0~19.9ms, (100us Increments)
  • Modeling flash (select models)
  • Auto Memory Function
  • AF Assist light (With an On/Off Switch)
  • Wireless Shutter Release

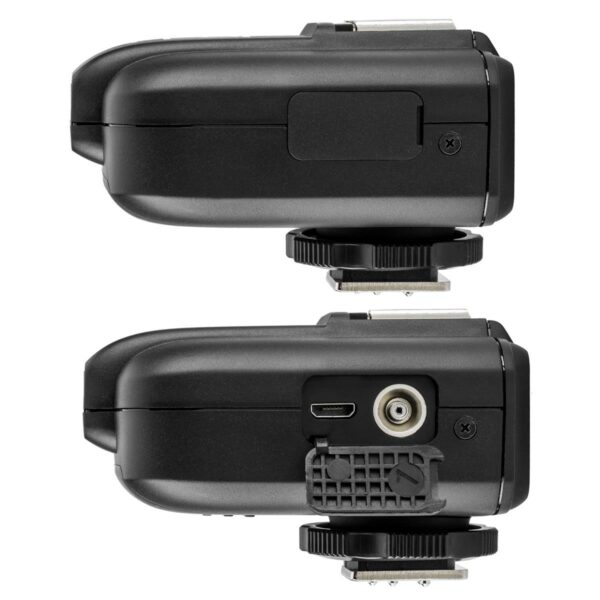

  • Micro USB Port for Firmware Upgrades
  • Transmitter PC 2.5mm Sync Port – Input & Output
  • 1-Year Warranty

WHAT’S IN THE BOX

  • Flashpoint R2 TTL Transmitter for Panasonic & Olympus
  • Instruction Manual
  • Flashpoint 1-Year USA Warranty
user-manual User manual
Flashpoint R2 TTL Transmitter for Panasonic & Olympus Specifications
Compatible Camera Models <b> Olympus:</b> PEN-F, E-P3. E-P5, E-PL5, E-PL6, E-PL7, E-PL8, E-M1, E-M10II <br> <b> Panasonic: </b> DMC-G85, DMC-GH4, DMC-GF1, DMC-GX85, DMC-LX100, DMC-FX2500GK
Compatible Cameras Panasonic & Olympus <br> Cameras that have PC sync socket
Remote system R2 2.4GHz Wireless
Modulation Mode MSK
Power Supply 2 AA Batteries
Range >100 Meters
Channels 32
Groups 5 (limited)
Triggering Modes Hot Shoe <br> Sync Cord <br> Test Button
Sync Connectors Hotshoe <br> Flash Shoe <br> 2.5mm Sync Port - Input & Output
Dimensions 2.8 x 2.0 x 1.8"
Weight with batteries 5.2 oz
